X-quisite VORO
X-quisite Voro
All X-quisite cartridges utilize patented monoblock ceramic transducer technology.
The Voro MC cartridge, with its unparalleled dynamics, is designed to deliver the most natural listening experience. The latest model in the X-quisite family features a unique ceramic transducer with a dual-layer iron core. This technology enables distortion-free conversion of the musical signal with exceptional dynamics.

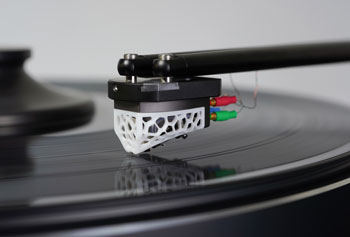

Thanks to its high output efficiency, the system works perfectly with all types of MC phono preamps. The VORO model’s generator is encased in a skeletal ceramic sculpture with an organic appearance. Its pattern is common in nature and is based on the Voronoi diagram, described by mathematician Georgy Voronoi. This design ensures optimal resonance behavior, as it combines maximum rigidity with minimal sensitivity to airborne noise.
Specifications:
| Cantilever and coil body: | Monobloc ceramic unit, patented design |
| Coil: | Pure copper 4N |
| Diamond shape: | FGS |
| Magnet unit: | Neodym-Armco |
| Body: | Ceramic – aluminium |
| Connection: | 1/2″ – 4pin, gold plated |
| Vertical Tracking Angle: | 20° |
| Weight: | 10,2g |
| Tracking force: | 1,9…2,1g |
| Output voltag: | 0,7mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 – 30‘000Hz |
| FIM distortion: | max. 0,2% |
| Impedance: | 2 x 12Ω |
| Recommended load: | 100 – 200Ω |
