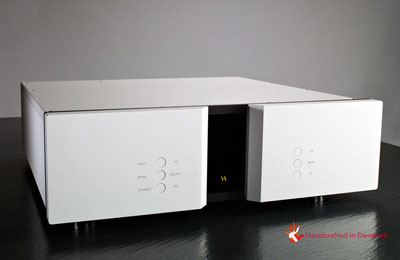

MP – D201 MkIII

 MP – D 201 MkIII  Masterpiece  Series

Digital-to-analog converter. The device is based on four AD1955 converters in a mono configuration. The clock circuit used was designed specifically for the Masterpiece series. The analog stage uses the same discrete modules as those used in the Masterpiece series line and phono preamplifiers. Thanks to this design, the device can be upgraded to the latest version. In its standard configuration, the device features digitally controlled analog outputs. Optionally, the device can be equipped with analog control implemented using a resistor ladder.

Technical Specifications:

Product Type: True balanced DAC/Preamp

Master Clock / DAC: VA Module – upgradable / DAC: 4xAD1955 in mono
configuration

Samplerate / Resolution: 792khz using Engineered Q8 DSP module/24bit

Inputs: 2xDigital RCA (S/PDIF) / 2xDigital XLR (AES/EBU) / 1xUSB (no DSD
support)

Input Resistance: Digital 110Ω XLR – 75Ω RCA / Analog10kΩ
XLR – 10kΩ RCA

Outputs: 1xXLR analog / 1xRCA analog

Analog Options: Analog volume control / 1xXLR analog + 1xRCA analog
inputs

Remote Control: Sold seperately

Power Cable: Not included

Dimensions: 130(H) x 435(W) x 430(D)mm

Weight:25Kg
