DA 0-3.0

DA  0 – 3.0

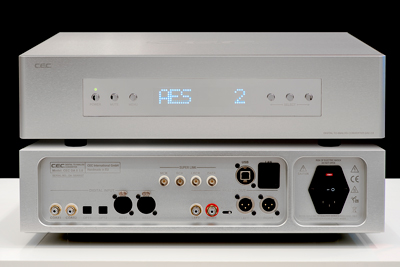

The DA-0 3.0 is a DAC designed to be a worthy companion to the TL-0 3.0 transport. The DAC is based on MSB’s 32/384 multibit discrete DAC chips. A large, easy-to-read display allows you to select one of four digital filter operating modes, change the upsampling algorithm, or invert the phase. All operations can be performed using the remote control or the front panel. It features a full set of digital inputs: AES/EBU, SPDIF, TOSLINK, USB, and CEC Superlink. The latter input is implemented via four separate BNC connectors that split the digital signal. This allows for even better synchronization between the TL-0 3.0 and DA-0 3.0 system components. The DAC’s enclosure is made of perfectly fitted aluminum components.

Specifications:

DACUniversal DSP controlled resistor ladder 32bit/384kHz Audio DAC
Power SupplyAC 120-230V / 50-60Hz
Analog Outputs• balanced XLR connectors
 • unbalanced RCA connectors

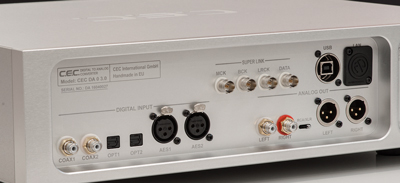

Digital Input• SUPERLINK: (BNC x 4) 2.5Vp-p/75Ω
 • Coaxial (SPDIF): 0.5Vp-p/75Ω
 • TOS (optical): -21~-15dBm EIAJ
 • AES/EBU (Balanced XLR; HOT=2):
 • USB 2.0: PCM 32bit/32-384kHz,
DSD 64/2.8224-128/5.6448MHz
Digital FilterSelection of 4 digital filters
ConsumptionPower Consumption 30 W
Dimensions432( W) × 400 (D) × 120 (H) mm
Weight21 kg
ColorSilver
