TL 2 N

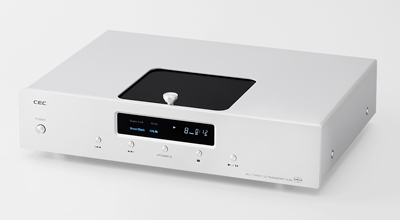

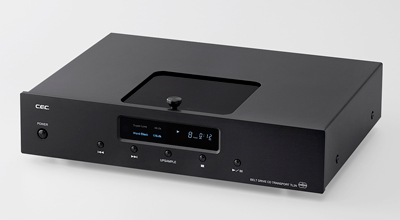

The TL-2N is a transport system that combines a belt drive with modern digital technology. The TL-2N follows the design philosophy of the TL-1 drive, which was introduced in 1991 and was a pioneer among belt-driven systems worldwide. The TL-2N mechanism features two belt drives that move the “laser and disc”—as well as a dual suspension system that reduces internal and external vibrations. This could be described as the integration of analog technology into digital playback. The TL-2N is a typical top-loader turntable. A 120-millimeter tonearm with a 380-gram counterweight is used to stabilize the record. The company has been using this solution for years, and it works perfectly. It provides stability that ensures the sound of records played on the TL-2N has a clarity and musicality unmatched by other designs.
Specifications
| Drive System | Double Belt Drive // Spindle & Pick-up |
| Playable Discs | Audio CDs & Finalized CD-R/RW |
| Power Supply | AC 230/120 V, 50/60 Hz |
| CD Stabilizer | Diameter; 120mm, weight; 380g (brass) |

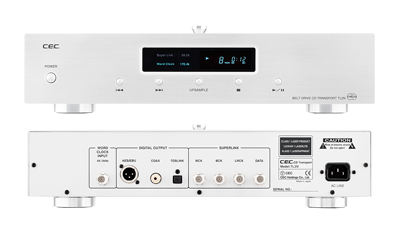

| Digital Output | SUPERLINK x 1: 2.5Vp-p/75 ohm (BNC x 4) |
| AES/EBU x 1: 2.5Vp-p/110Ω (pin2=hot) | |
| COAXIAL x 1: 0.5Vp-p/75Ω | |
| TOS x 1: -21 ～ -15dBm EIA | |
| Word clock | BNC x 1: 44.1kHz |
| Up-sampling | 24bit / 88.2kHz, 176.4kHz (AES/EBU, COAX, TOS) |
| Consumption | 21W |
| Dimensions | 435(W) x 335(D) x 111(H)mm |
| Weight | 12 kg |
| Color | Silver or Black |
