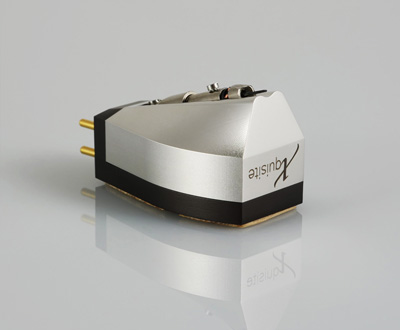

X-quisite CA
All X-quisite cartridges utilize patented monoblock-ceramic transducer technology, which delivers the highest resolution and detail while producing an exceptionally natural sound. The CA (Copper/Aluminum) model features a pure copper voice coil that has been carefully matched to an advanced layered copper-and-aluminum housing to achieve the most engaging sound signature. Each X-quisite insert is hand-assembled step by step and personally calibrated by Micha Huber.
Specifications:
| Cantilever and coil body: | Monobloc ceramic unit, patented design |
| Coil: | Pure copper 4N |
| Diamond shape: | Micro ridge |
| Magnet unit: | Neodym-Armco, reduced eddy current loss |
| Body: | Aluminium-wood |
| Connection: | 1/2″ – 4pin, gold plated |
| Vertical Tracking Angle: | 20° |
| Weight: | 14,8g |
| Tracking force: | 1,9…2,1g |
| Output voltag: | 0,3mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 – 30‘000Hz |
| FIM distortion: | max. 0,2% |
| Impedance: | 2x 24Ω |
| Recommended load: | 400 – 800Ω |
