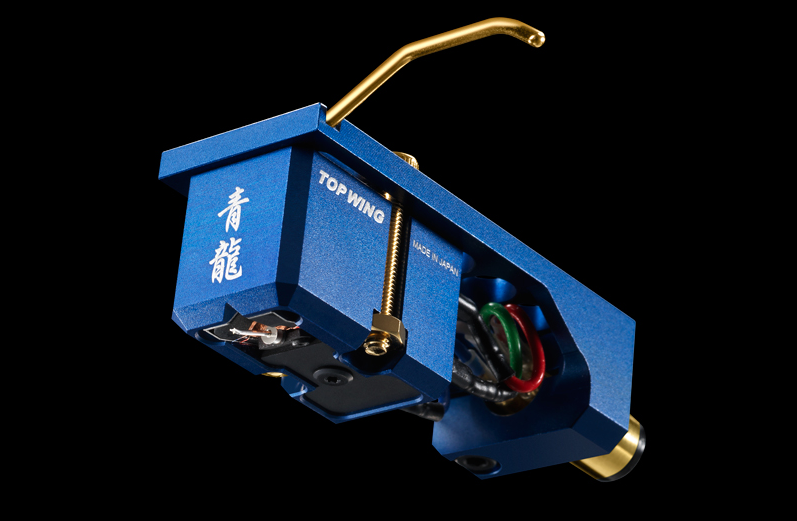

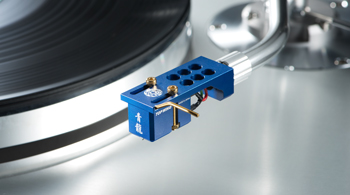

Precisely designed and manufactured individually, each component maximizes the performance of the Blue Dragon cartridge’s “core-less system.” Due to its design, the electrical characteristics are similar to those of MC cartridges. The output voltage is 0.2 mV. The cartridge body is made of various materials, with a focus on ultra-durum aluminum to avoid unnecessary resonances. The headshell insert included with the product is also made of ultra-duralumin using Mitchaku Comtact technology developed by Fidelix.
Specifications: Type of power generation: Coreless straight-flux
Stylus: Line contact
Cantilever material: Aluminum
Output at 5 cm/s at 1 kHz: 0.2 mV
Internal impedance: 12.3Ω
Inductance : Secret (but non sensitive to capacitive load)
Recommended tracking weight: 1.75 g–2.0 g Headshell material: Ultra Duralumin (adopting Fidelix Mitchaku Contact technology) Weight: 12.3 g (total weight equipped with the attached headshell: 30.0 g
